Why a design system, and why now?

At Cappfinity, we believe in a world where skills and potential create opportunity for all.

Cappfinity are global leaders in measuring and developing potential in Talent Acquisition and Talent Management. They deliver immersive solutions that help organisations hire effectively and map skill requirements to organisational needs.

When output outpaces structure

When I joined Cappfinity, the business was evolving. Historically, it had operated as a consultancy, offering bespoke solutions to clients: if a client asked, “Can the platform do X?”, we’d say yes, and build something to make it happen. Over time, this approach left us with products full of bolted-on solutions, technically functional, but inconsistent and hard to scale. Each platform had its own quirks, increasing onboarding time and limiting growth.

The consequences:

Inconsistent user table designs within enterprise products highlights the need for a unified component system.

Understanding the impact of lacking systemisation helped us define what success needed to look like for this design system.

What the design system needed to do:

Lay the foundations for productisation

Improve usability across platforms

Embed design thinking in dev workflows

Align products with the refreshed brand identity

My Role

I led the end-to-end creation of the design system, balancing strategy, design, and implementation across design and engineering.

Discovery and audit

At Cappfinity there is a lot going on, so before zooming in to the specific inconsistencies, it was important to understand exactly what the product ecosystem was comprised of.

The Cappfinity Product Ecosystem with some example products

Cappfinity's products fall in to one of four categories: Assessment Platforms, Marketing and E-commerce Website, Learning and Development Tools and Enterprise Tools. This meant that the audit had to cover both between and across product type inconsistencies.

Product Audit

I had 4 main goals for the audit:

Understand how different platforms handled similar features/content

Identify UI component inconsistencies both across and within product types

Identify accessibility issues across platforms but particularly in assessment tools

Start to identify where things could align and where we would need flexibility

I used Trello to organise the audit. This wasn’t just for me. It became a tool our devs and PMs could use to reference specific issues, screenshots, and component discussions.

• Logged where and how different UI components were used across platforms
• Attached visual examples to cards for easier developer reference
• Grouped by product, UI state, and feature
• Flagged accessibility issues and patterns for review
• Created a shared resource for design and dev

Trello board used for UX Audit process

What did the audit reveal?

These findings became the foundation for the design system work:

18+ variants of core components within enterprise tools
‍

Standardise core component structure and define baseline specs

No standard approach to colour with contrast issues on more than 30% of screens.

Define brand colour tokens and usage rules with built-in accessibility standards

Around 25% of UI components not reusable due to being hard-coded for specific contexts

Create modular, context-agnostic components and document expected behaviours

Visual and behavioural drift without a shared standard for when to differ

A decision matrix to assess whether variation was necessary or not for documentation

Lack of visual through line and consistent layouts across Websites, Enterprise products and Learning and Development products uncovered by the audit

Stakeholder discovery

Given the range of products and the differences in usage goals and contexts, a legitimate question I needed to ask after looking at all these inconsistencies was "Is the divergence we are seeing here justified?"

These questions would require input from various people - designers, product owners and engineers. I facilitated a couple of workshops to help us, in a structured way, identify where the system needed to be adaptable.

Plan for facilitating a workshop to help identify where and why flexibility would be needed in the design system

In these discovery sessions we mapped components across products using a Same / Similar / Different framework and paired this with a contextual audit of each product’s purpose, users, and constraints.

Contextual mapping: Understanding the context and constraints of each product

Intra-product type SSD: identify what can be reused, adapted, or needs redesign within the same product

The within-product type Same/Similar/Different activity identified what variation existed and the contextual audit identified why some legitimate variation might exist. When combined it allow us to see where divergence was necessary at the within product level.

This created a stable baseline for cross-product component mapping. Doing things in this order helped me avoid over-systematising (forced alignment where flexibility was needed) or under-systematising (treating avoidable inconsistencies as intentional).

Cross-product component mapping: defining where alignment and divergence can be justified at the cross product type level

This process helped me move from observing inconsistencies to defining system logic. It also laid the groundwork for governance by helping me create a decision framework around how to decide whether or not a component needed to diverge.

Consistent at the core, contextual at the edges

A visual demonstrating each level of the design system orbiting the core tokens

The structure of the Cappfinity design system has five levels:

This structure solves the challenge of systematising a fragmented ecosystem by anchoring consistency at the token level, while progressively allowing flexibility outward, so product teams can meet local needs without compromising global integrity.

Laying the foundations

Designing with the build environment in mind

Collaborating with developers early helped me align the design system’s foundations with Angular's architectural needs, shaping how tokens, theming, and documentation were structured.

Defining primitives

Taking guidance from the Brand Manager, we defined a shared set of raw values to anchor the system, ensuring consistency.

System-wide constants, aligned with brand, and used as the foundation for semantic token mapping

This enabled the next step: defining semantic tokens that assigned functional meaning without being tied to any single brand, product, or theme.

Defining semantic tokens

To make these primitive values meaningful across different contexts, we needed a layer of abstraction. That’s where semantic tokens came in.

Examples of semantic tokens, the element they are supposed to refer to on an interface as well as the linked default primitives

Whilst there are default values applied, it's best to think of these design tokens as value neutral. It's about defining what something is not necessarily how it looks yet.

Avoiding bloat in the token system

Based on previous experience, I recognised that tokenising everything can lead to unnecessary complexity. I worked with engineers, product owners, and other designers to identify where it made sense to make something a token. That's where yet another decision framework came in:

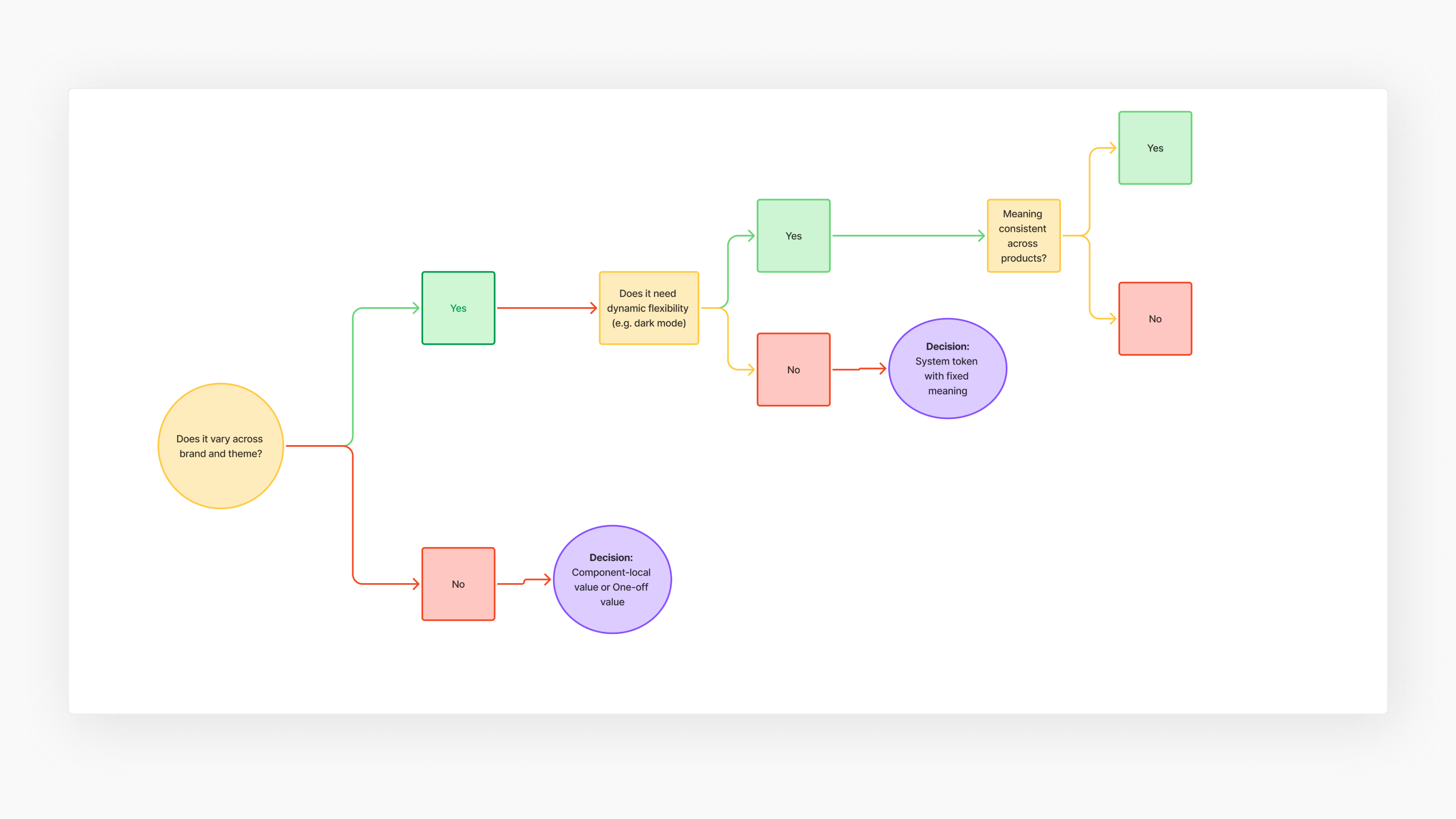

Decision-making framework for deciding whether or not something should be a token as part of the design system governance

The tokens could end up in one of five categories: static value, static semantic, themed semantic, component-level and alias.

Feeding into base components

Tokens alone don’t create usable interfaces. The next step was translating these values into functional UI through base components. This allowed me to separate component structure, interaction and accessibility rules from visual expression.

This diagram shows how base components consume tokens, creating structure for components

Theme expression without fragmentation

To demonstrate how the design system supports visual flexibility, I'll zoom into how I applied theming to the Card component. This example shows the pay off for everything we had done to this point.

1) Understanding variation across contexts

What I did

Audited how the Card component appeared across products and found widespread use but with significant visual and behavioural differences.

Why it mattered

Contextual mapping helped determine that many of these differences were justified, shaped by differing UX goals, content density, and product-specific interaction patterns. Some within-product differences were avoidable, but most between-product variations were purposeful.

2) Building a base component

What I did

Abstracted the shared logic of what makes something a "Card" into a single base component.

A base Card component built from system styling tokens and configurable content areas, enabling consistent structure with flexible expression across products.

Why it mattered

Despite visual differences, every card was fundamentally doing the same thing on the interface: it previewed content and directed users to act. I codified common behaviours i.e content hierarchy, spacing and states and planned for Angular's configurability to toggle optional elements (e.g. image, metadata) via inputs. This would ensure that these things would remain consistent regardless of where the component was being used and avoided duplicated dev effort.

3) Theming the card across the ecosystem

What I did

Applied theming to allow brand and product-specific expression based on different user goals and content densities.

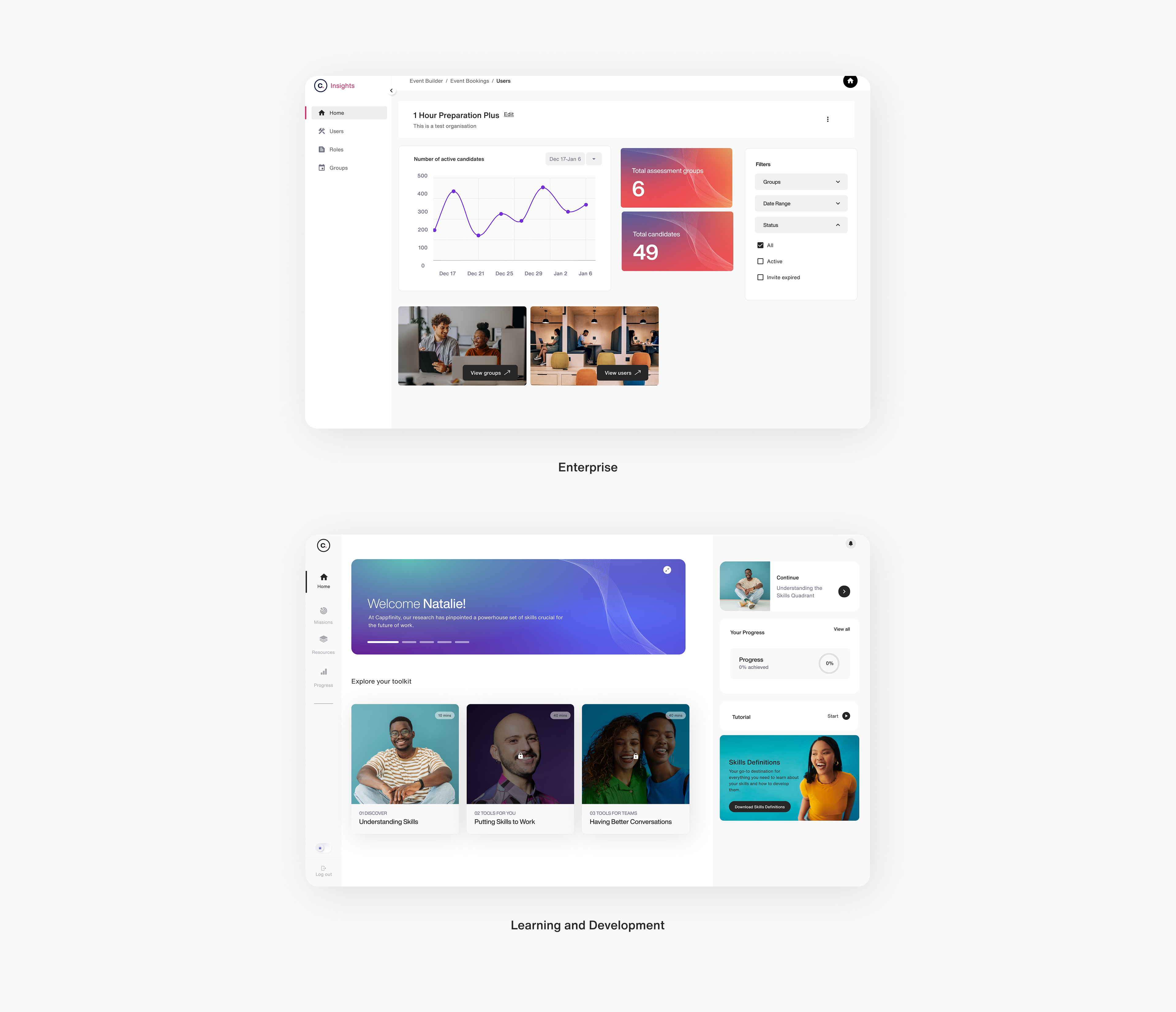

Card component adjusting to different product contexts whilst remaining behaviourally consistent with a clear visual through line

Why it mattered

Even as layout and styling shifted, each instance remained recognisably a Card, in form and function, thanks to consistent logic, shared anatomy, and alignment to the base component. This illustrated the power of the system to balance cohesion and contextual expression at scale.

Even the best laid plans...

... weren't quite the best. Despite all the upfront thinking, structure, and system logic I’d put in place, the first phase of rollout surfaced cracks I hadn’t accounted for. Before unpacking those in detail, let’s rewind to the first phase of rollout.

The plan

Objectives

• Test design system viability in a live environment
• Identify gaps in documentation, structure, and developer adoption

Rollout Scope

• One enterprise product
• One learning product
• One B2B website

My Approach

• Documented token structure and component states in Storybook
• Created Figma component specs with interaction notes
• Relied on existing dev workflows

Documenting components in Storybook to try and ensure alignment between Figma and code with a live, version controlled source of truth

So what went wrong?

Mistake #01: Documenting the what, not the why

While the documentation clearly outlined what components looked like and how they behaved, it didn’t always communicate what they were for. Without that functional context, the system struggled in real working scenarios, particularly in enterprise products where complex content types could very easily find themselves housed in some less than ideal UI patterns.

Compounding this was the reality of working in a low UX maturity environment, where design wasn’t always in the loop. Features could be requested top-down with a two-week turnaround, bypassing design entirely and the system wasn’t resilient enough yet to absorb that kind of unpredictability.

Inappropriate use of the modal component: too much complexity and too many consequential actions for a transient surface

Mistake #02: Out of sight, out of mind

Due to other project demands, I ended up treating the docs as a stand-in for ongoing involvement. Without regular checkpoints or feedback loops, I gradually lost visibility of how the system was being used. By the time issues surfaced, design debt had already crept in.

Our continuous improvement loop connects Figma, Storybook, and developer workflows

Mistake #03: Trying to grow with default behaviours

Another key issue was relying too heavily on existing development workflows. While this made initial integration feel faster, it ultimately came at the cost of design fidelity. This way of working encouraged doing things the easy way.

The friction of integrating Storybook with Angular made it harder to use it as a reliable, visual single source of truth, so in the day-to-day realities of working as a developer, it was easier to default to whatever already existed in the codebase.

The result: components that technically "worked," but no longer aligned with the system’s visual or behavioural logic.

The modal component, while an improvement from where we started in terms of brand alignment, but still a clear departure from intended designs defined in Figma

You can't systematise your way out of culture

This experience became the catalyst for taking the initiative to define an actual design ops strategy and process. It became clear that no amount of component refinement or documentation could compensate for a lack of systemic support for design. For the design system to succeed long term, attitudes towards designs role had to improve. Without that shift, the system would always risk being sidelined, no matter how well it was built.

See how this fed into my broader Design Ops work in this article.

Design system showcase

After the first rollout exposed the gaps in our processes and design influence, we hit pause, partly due to engineering resource constraints, but also as a chance to regroup. I used the breathing room to implement all the improvements to the documentation and processes based on lessons learnt from the first release.

By the time we were ready to relaunch the system months later, we were armed with a better more resilient process.

The journey from primitive tokens to the CSS variables to live, themed "Label" component

Storybook preview of the primary Button component switching between Enterprise and Marketing themes

Buttons

Adapt to hierarchy, layout, and action, without breaking system rules.

Primary navigation

Marketing supports quick orientation for conversion; Learning minimises distraction with a compact layout; and Enterprise defaults to an expanded view to support multi-tasking and admin-heavy workflows

Cards

Flexes for content density and range of content types with a clear shared visual identity and predictable interaction behaviours

The Digital Media Toolkit — a shared space where teams access brand, design, and marketing guidance

Impact

01

A cohesive design system supporting 10+ digital products

02

40+ reusable, accessible components created

03

Adopted across 4 digital products, with active contribution from design and engineering

Looking Ahead

Design systems are never truly "done". They evolve with the products and teams they support. While this system has already greatly improved visual consistency across the Cappfinity ecosystem and improved how design and development relate to each other, full adoption across all products is still a work in progress.

Creating this design system highlighted the importance of speaking the language of your stakeholders. Embedding the system into existing workflows, providing usage guardrails, and actively supporting implementation through QA were just as critical as the design work itself.

Next Priorities

• Expand system coverage to remaining products
• Refine guidance around more complex UI patterns
• Establish governance and versioning processes to ensure long-term consistency as more contributors begin to use and evolve the system
